Heavy Steering axis tank transport trailer

Product Item：GTGC110TDP

more than 100tons

oversized tank transporting

axles hydraulic steering

width and length extendable

Description

Oversized tank transport trailer -Heavy Steering axis tank transport trailer-self loading and unloading

Usage :Transport large-scale equipment tank body or wind tower.

Some large-scale production equipment are the focus of development in many fields, such as wind power, petrochemical, and engineering. The components of these large-scale production equipment, especially tank-type parts, have a diameter of more than 4 meters, more than 30 meters in length, more than 100 tons in weight.

This kind of trailers are professional for transporting the above cargo.

There are some mainly types of tank transporter trailers as follow:

Tank transport ultra low bed trailer ,

Width/length extendable oversized tank transport trailer

Steering axles tank transport trailer

Heavy duty lift dolly tank transport trailer with concave platform

Tank transport modular trailer

Clamped type tank transport trailer with concave platform

SPMT tank transport trailer

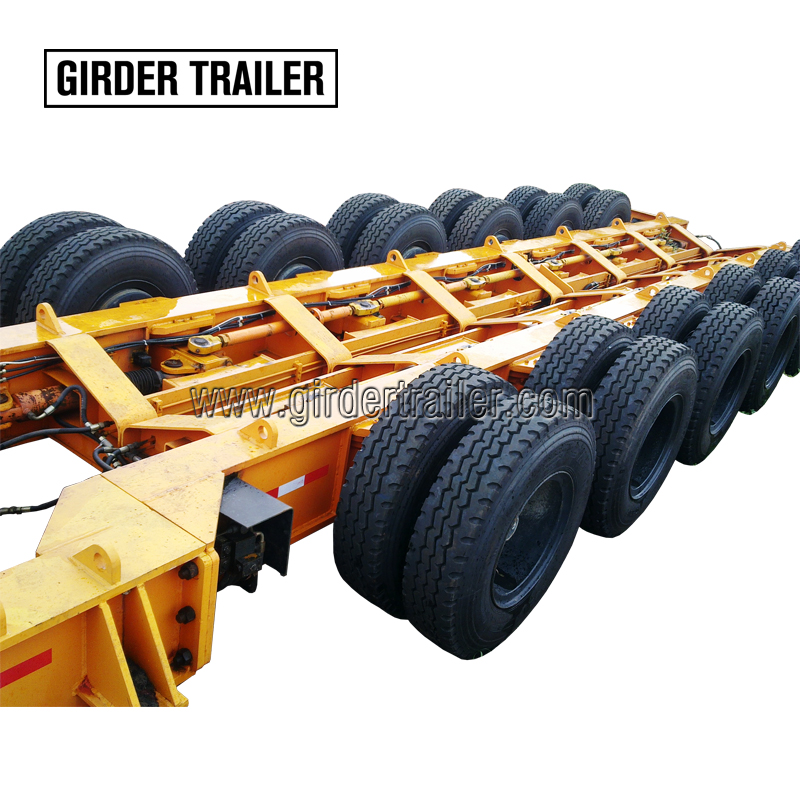

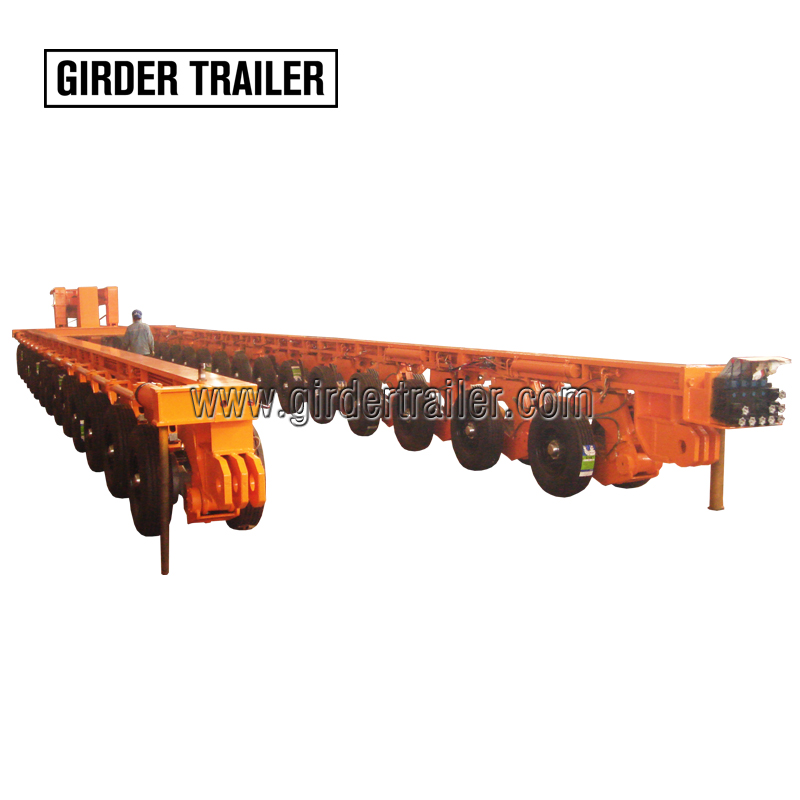

Heavy Hydraulic steering axis tank transport trailer:

Features :

1.This steering axis trailer has steering axles , so can have more axles payload .This kinds of design will protect the tyres from damage.

2.The width and length can be designed extendable for transporting different diameters and length oversized tank .

3.The platform height can be made very low.It can be 350mm-900mm from the ground.

3.It has normal axles type and steering axis type. Normal axles type can have 2-4 axles ,Steering axles can have more than 5 axles .

4.The payload is from 30tons to 200tons .

5.This kind of trailer can also transport ship .

Parameters:

Model	GTGC100TDP
Payload	30000KG-200000KGS
Platform	With radian for different diameters tank bodies
Gooseneck	Normal or hydraulic lifting goose neck optional
Axles	2-10 axis lines optional ,hydraulic steering
Tire	Optional
Power station	for control the hydraulic systems
Braking system	Double air chamber ,brake valve ;ABS optional
Electrical	LED light , 7 ways ,24V
Painting	Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
