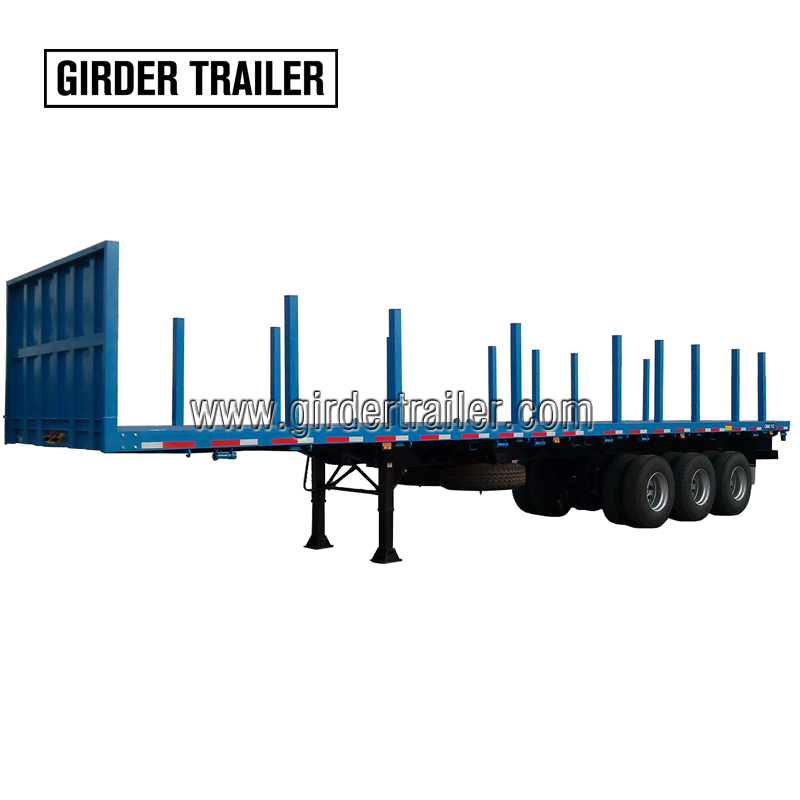

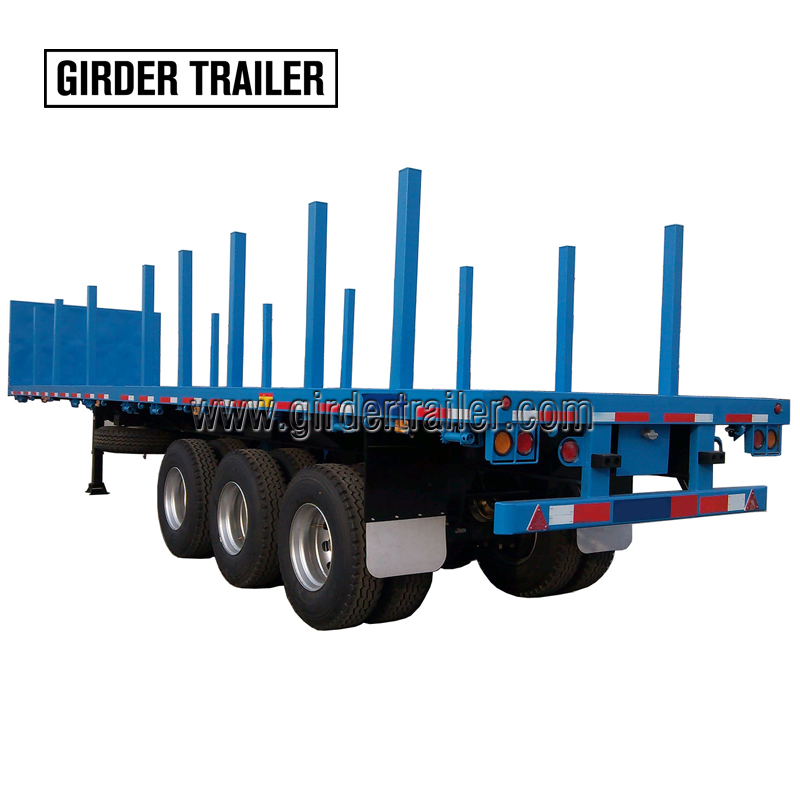

Tri axles Flatbed trailer with removable side bars

Product Item：GT0243TJZG

Payload (kgs):50000

Tare weight (kgs):7000

Dimensions (mm):12400*2480*1550

Axles :3 * 13ton capacity

Description

Tri /Quad axles Flatbed trailer with removable side bars

QINGDAO SHIYUN TRAILER CO.,LD ,is a professional China Trailer manufacturer with brand “girder trailer”.For the shipping standard container transporting ,we have 2 kinds of solutions: skeletal trailer and flatbed trailer .

The standard shipping container has different size : 20foot ,30foot ,40foot ,45foot,48foot and 53 foot.The trailer can be made accordingly with different length.
Axles Number can be 1,2,3 or 4 axles for transporting different weight container.
The trailers must be with container twist lock to connect with the container.
The material can be high strength Mn carbon steel or aluminum material.
Flat deck trailers can be straight beam or step deck type.
The flatbed trailer can be installed side bars,Steel pipe stakes,side walls or fences on the platform for transporting cargoes
The trailer main beam can be telescopic extension to realize the length extendable.

Parameters:

Model	GT0243TJZG
Size (L*W)	(8000-13750)*2500 (mm)
Height	1100mm~1600mm
Payload	50000KG
Main beam	Heavy duty I beam.
Side bars	For bulk cargo transporting beside standard containers
Side beam	140/160/180 mm channel beam
Platform	Checked plate 2,3 or 4mm thickness
Axles	3 * 13ton capacity (BPW,FUWA,L1 and other Brand optional)
Suspension	Mechanical suspension (Air suspension optional)
Leaf spring	10pcs
Tire	12R22.5 12pcs (Other size optional)
Rim	9.00-22.5 12pcs (Other size optional)
King pin	2’’/3.5’’ bolt type
Landing gear	28 Ton two speed
Twist locks	12 pcs
Braking system	Double air chamber ,brake valve,32L air tanks ;ABS optional
Electrical	LED light , 7 ways ,24V
Painting	Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
