Nicholas modular trailer,Multi axles module trailer

Nicholas modular trailer,Multi axles module trailer

Product Item：GTNM240T

Payload (kgs):more than 60000kgs

hydraulic lifting suspension

heavy duty payload

modular trailer

Description

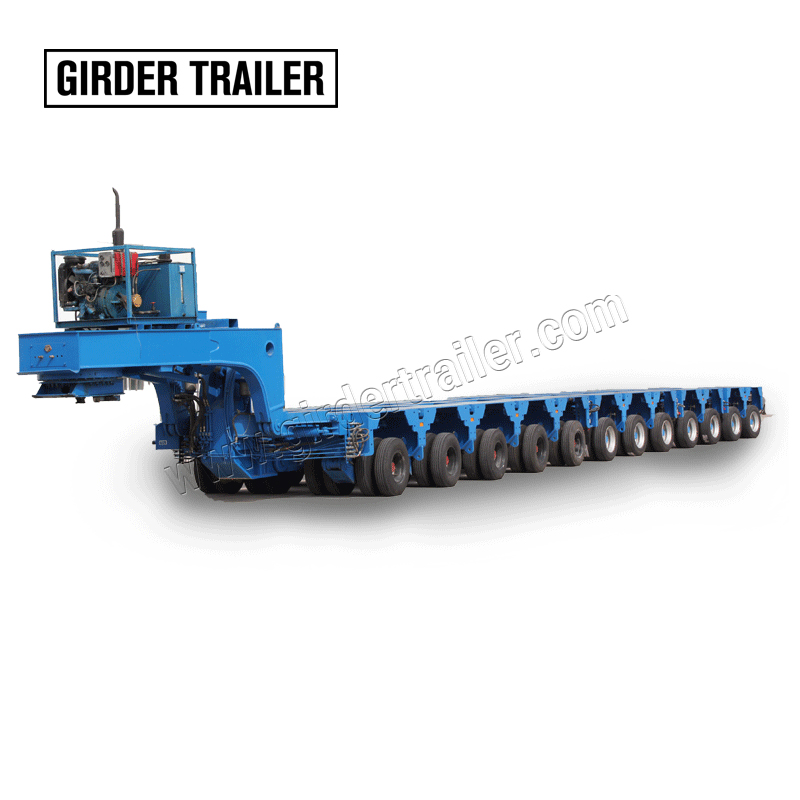

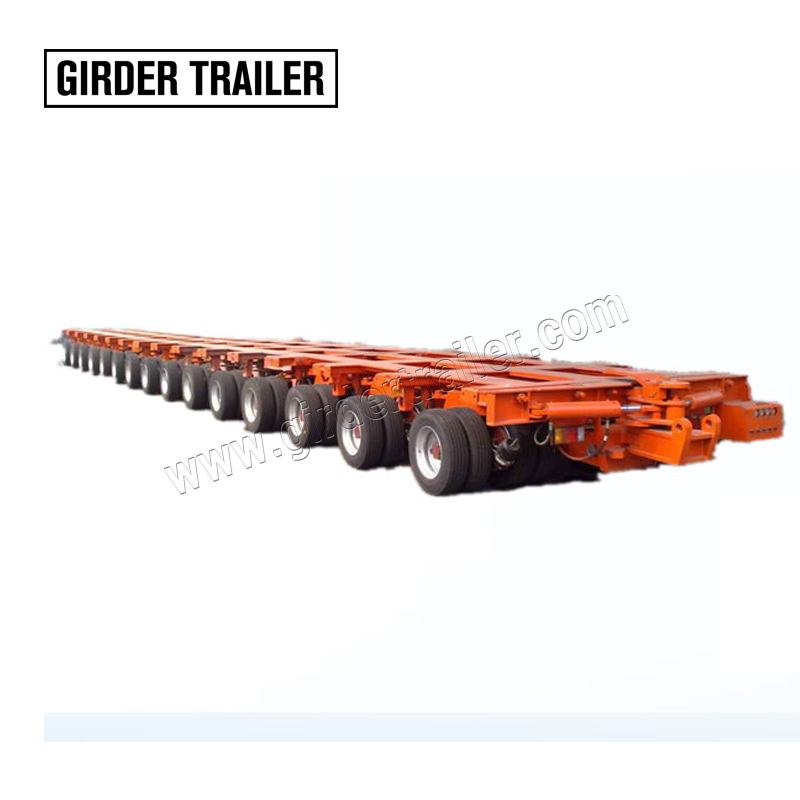

Nicolas MDE/MDED Modular Trailer- multi axle

QINGDAO SHIYUN TRAILER CO.,LD ,is a professional China Trailer and transporter manufacturer with brand “girder trailer”.For modular mulit axles trailer ,we can manufacture different models and can be fully compatible with Original Goldhofer THP/SL, Nicolas MDED, COMETTO 51M and SCHEUERLE InterCombi.

SHIYUN Transporter offers a wide range of modular trailers for transporting loads on public roads. The product range comprises different model series of modular platform vehicles with various load capacities, platform heights and vehicle widths, also adaptable to the respective country-specific regulations. In order to optimize payloads, the focus of the design process is on an extremely lightweight construction whilst retaining the bending-resistant main beams. The basis of the modular road vehicle solutions is the hydraulically-supported pendulum axle. It allows for an even distribution of the payload across several axles. Uneven ground conditions can be compensated for up to 650 mm. Nevertheless, the hydraulic pendulum axle is very road-friendly. The all-wheel steering with large steering angles guarantees the best possible manoeuvrability of modular heavy-duty vehicles.

Features:

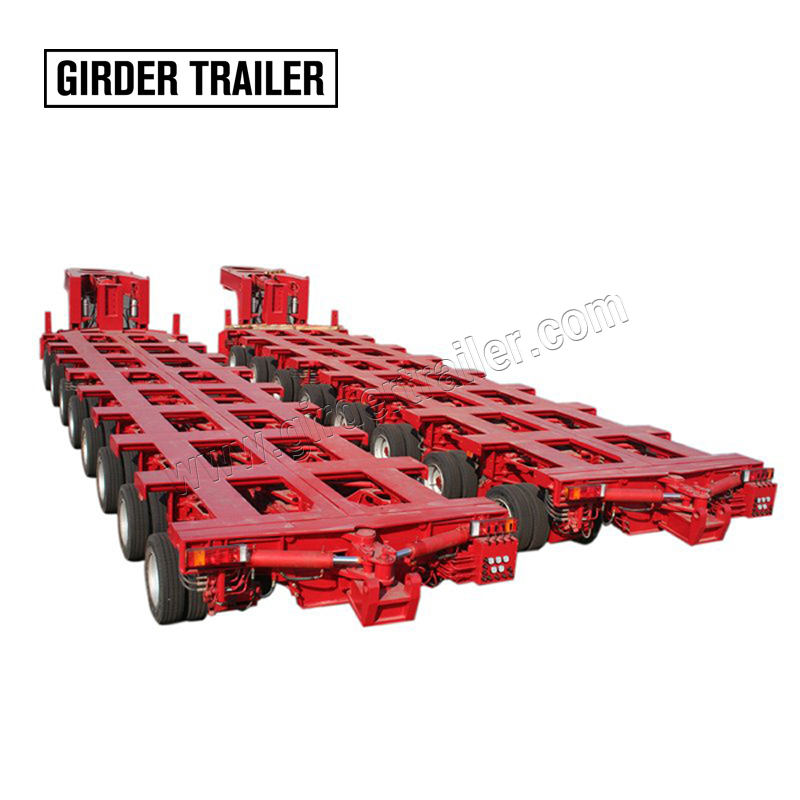

1.Versatile modular vehicle to configure trailer in 2, 3 and 4 files

2.Up to 34 ton technical axle load

3.Lowest platform height on the market with 770 mm in low position

4.Suspension hydraulic lifting stroke of 600 mm

5.Steering angle up to 55°

6.Simple, accessible steering system, easy operation

7.Wide range of interchangeable platforms and Accessories

8.The lowest dead weight on the market

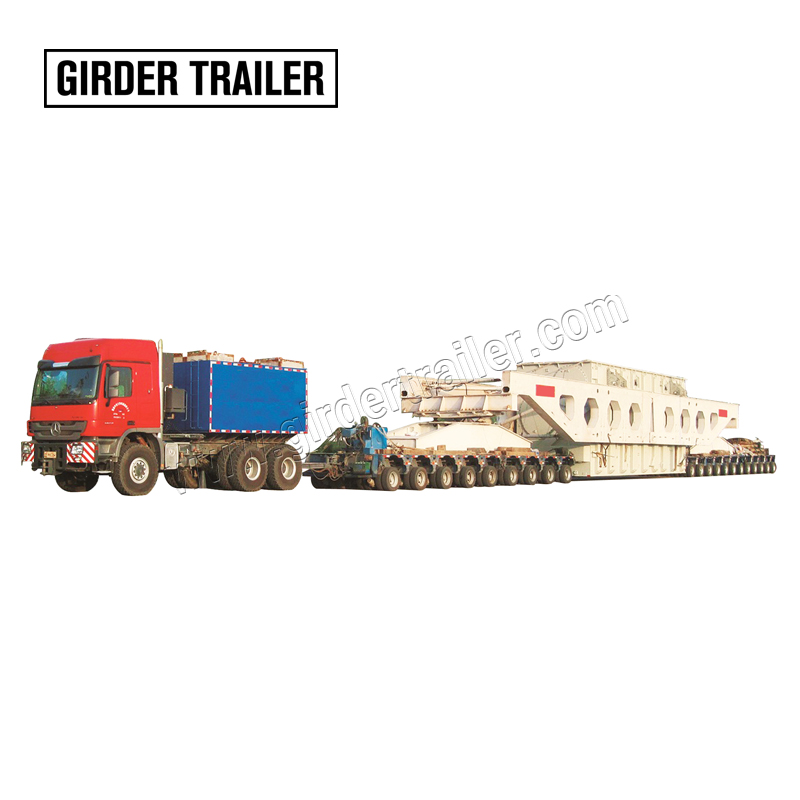

9.Multi axles accessories include hydraulic gooseneck,drop deck,spacer-intermediate bridge,bolster-turn table,Vessel Bridge(Length and Width can be Extendable) and Girder Bridge.

Parameters:

Number of axis-line(n)	2	3	4	5	6
Speed(km/h)	0-80
Total weight(t)	54	81	108	135	162
Rated payload(t)	47.4	71.1	95.8	118.5	142.2
Dead weight(t)	6.6	9.9	13.2	16.5	19.8
Load per axis line(t)	27
Total length(mm)	3100	4650	6200	7750	9300
Total width(mm)	3000
Height(mm)	1075+300/-280
Axles distance(mm)	1550
Wheels distance(mm)	1820
Tyre specification	217/75R17.5 135/133J or 7.5R15
Rim specification	6.00-17.5 or 6.00-15
Number of tyre	16	24	32	40	48
Max. turning angle of wheel	55°
Min. turning radius (mm)	Inner 500	Inner 1600	Inner 2700	Inner 1600	Inner 2220
Min. turning radius (mm)	Outer 4200	Outer 6000	Outer 7900	Outer 6000	Outer 7000
