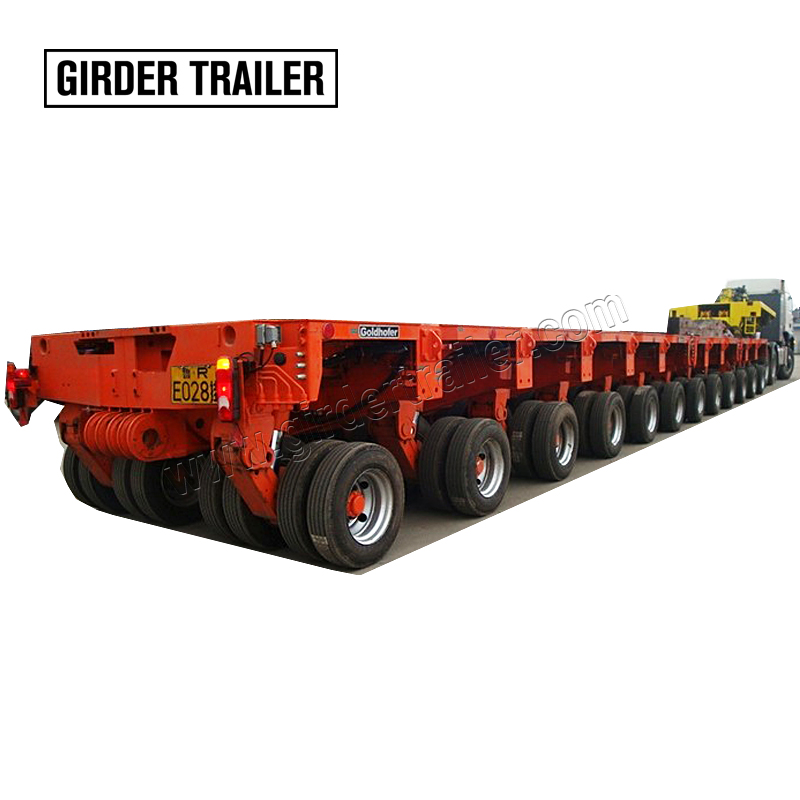

Goldhofer modular trailer,Multi axles module trailer

Goldhofer modular trailer,Multi axles module trailer

Product Item：GTGM180T

Payload (kgs):more than 60000kgs

hydraulic lifting suspension

heavy duty payload

modular trailer

Description

GOLDHOFER THP/SL modular trailer- multi axle

QINGDAO SHIYUN TRAILER CO.,LD ,is a professional China Trailer and transporter manufacturer with brand “girder trailer”.For modular mulit axles trailer ,we can manufacture different models and can be fully compatible with Original Goldhofer THP/SL, Nicolas MDED, COMETTO 51M and SCHEUERLE InterCombi.

Goldhofer THP/SL trailer is one of the most popular hydraulic modular trailer all over the world. Qingdao shiyun trailer co.,ltd is a factory of this modular trailer which can be connected and worked together with original Goldhofer trailer in fully condition, especially the most classic type THP/SL.

Furthermore, our steel structure of frame chassis is enhanced. Improvement, modification, trouble shooting, renovation and upgrading of your old GOLDHOFER trailer are also available here in Shiyun Trailers.

Features:

1.Advantages of Goldhofer THP/SL model Hydraulic Modular Trailer:

2.Swing axles with hydraulic axle compensation system (level adjustment)

3.Hydro-mechanic all-wheel mechanical controlled steering in 2-circuit design

4.Box-shaped center frames with extremely high flexural strength

5.Optimized bolt lashing coupling for easy coupling of the chassis modules

6.Combination options in longitudinal and lateral directions

7.Versatile expansion options by means of additional equipment

8.Suitable for commercially available heavy haulers

9.Hydraulic Suspension Stoke +/- 300 mm

10.Ball bearing race ring design modules

11.Goldhofer THP/SL model Modular Trailer in ball bearing race ring design are especially designed for heavy-duty loads in off-road applications. The robust design and high bending moment ensures safety and availability even in extremely rugged terrain. Goldhofer THP/SL model Modular Trailer are predestined for use in flexible and economical transport applications.

Parameters:

Number of Axle-line(n)	2		3		4		5		6
Speed(km/h)	5	80	5	80	5	80	5	80	5	80
Total weight(t)	68	32.8	102	49.2	136	65.6	170	82	204	98.4
Rated Payload(t)	61	25.8	91.5	38.7	122.8	52.4	152.5	64.5	183	77.4
Dead Weight(t)	7		10.5		13.2		17.5		21
Load Per Axle Line(t)	34	16.4	34	16.4	34	16.4	34	16.4	34	16.4
Total Length(mm)	3000		4500		6000		7500		9000
Total Width(mm)	3000
Height(mm)	1175±300
Axle Distance(mm)	1500
Wheels Distance(mm)	1800
Tyre Specification	215/75R17.5
Rim Specification	6.00-17.5
Number of Tyre	16		24		32		40		48
Max.Turning Angle of Wheel	55°
Min.Turning Radius(mm)	inner 450		inner 1500		inner 2600		inner 1500		inner 2000
	outer 4070		outer 5800		outer 7600		outer 5800		outer 6700
