Folding gooseneck low bed trailer

Product Item：GTQZ0301TDP

Payload (kgs):more than 30000kgs

convace beam or flatbed beam type

front loading trailer

axles lifting and steering optional

Description

LOW BED TRAILER -Front loading low bed trailer

Low bed trailer is a kind of semi-trailer that has a super low cargo platform, the platform is also called drop-deck. Mainly specialized for transportation of crawler crane, excavator, crawler loader, bulldozer, railroad equipment, and other crawlers/tires equipment. Benefit from the low bed design, the trailer has high trafficability to go through bridge arc and tunnel, and lowers COG(center of gravity) of cargo.The trailer body has a drop-deck which is lower than the front gooseneck and the rear wheel-set, due to the drop deck design, it always comes with a gooseneck, so it is also called low bed semi-trailer.

DIFFERENT TYPES OF LOWBOY TRAILERmade by [GIRDER TRAILER]

1	Normal lowbed trailer	6	Lowbed trailer with dolly
2	Multi axles lowbed trailer	7	Ultra lowbed trailer
3	Lifting steering lowbed trailer	8	1 lines 2 axis lowbed trailer
4	Front loading lowbed trailer-----Detachable gooseneck lowbed trailer	9	Extension lowbed trailer
5	Front loading lowbed trailer-----folding gooseneck lowbed trailer	10	Other lowbed trailers

Folding gooseneck lowboy trailer:

QINGDAO SHIYUN TRAILER CO.,LD ,is a professional China Trailer manufacturer with brand“girder trailer”.Front Loading lowboy trailer is a kind of drop deck lowboy trailer whose ramp is in the front of the trailer .The trailer gooseneck can be detachable or folding.Which can make the platform lower than normal trailer. All the he parameters can be made according to your special requirement.

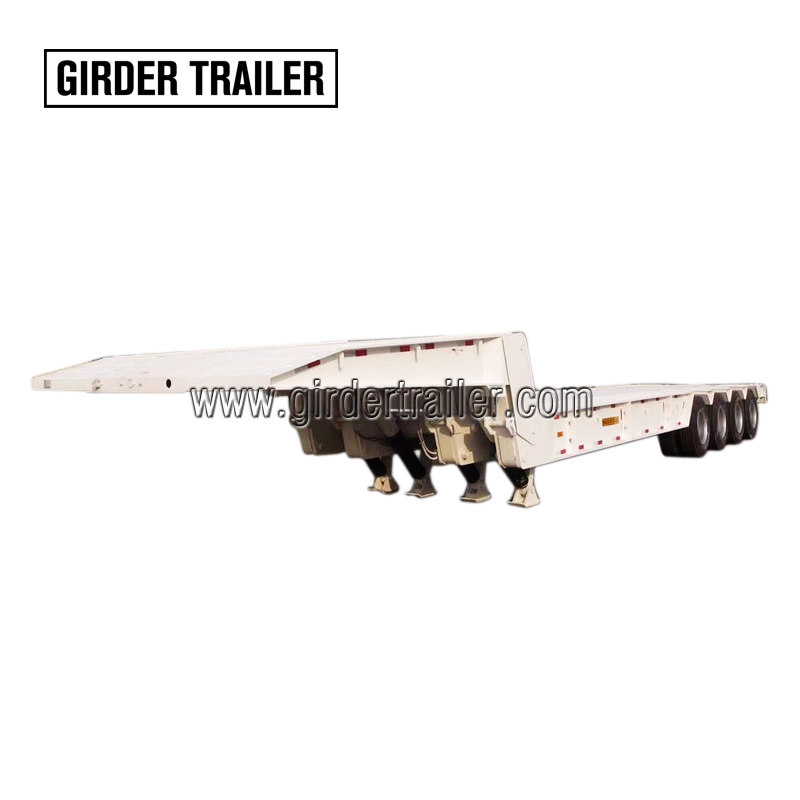

Folding gooseneck trailer is a kind of front-loading trailer, different from the Detachable gooseneck trailer, you can load the trailer from the front of the lowbed trailer(could be flatbed trailer) but no need to dismantle the gooseneck from the trailer body. It is widely used for transporting construction machines no matter they are with tires of crawlers.When unhooking from the prime mover, the semi trailer’s neck could be folded to ground as a shallow slope for crawler crane and other machines to drive on.

The gooseneck is a design with a hydraulic folding structure. When the structure folded, it’s a gooseneck to connect the trailer with the prime mover. When it unfolded, it’s will touch the ground as a shallow slope for cargoes loading. Compare to rear ramps, it’s shallow and stable, could effective solutions for cargo loading.

GIRDER BRAND TRAILERhas two kinds of front loading low bed trailers:

1.RCN removable and detachable gooseneck low bed trailer:

2.Folding gooseneck low bed trailer:

Here we introduce our 2nd one steering lifting low bed trailer :

Front loading low bed trailer-folding gooseneck low bed trailer:

Features:

1.Lower loading deck:when the hydraulic gooseneck removed from the trailer body, the trailer bed can touch the ground, makes loading and unloading more safe and efficient.

2.Arc-up design for the cargo platform deck.

3.Mechanical suspension,air pneumatic suspension,cantilever rigid suspension and hydraulic steering suspension optional.

4. Lifting function:hydraulic and air suspension be able to adjust height

5.Degree of automation is high.And it also has high control procedures and alignment in connecting,Only one person can operate it.

6. Higher strength steel to ensure the low platform not drop down.

7. Drop deck minimize trailer’s platform height, increase trafficability and stability for over height cargo.

8. Side bracket is an option(for increase overall width), removable and swinging

9. The cover surface of the platform can be wood to anti-skidding or diamond checked plate.

10. Can make telescopic beam to realize length extension.

Parameters:

Model	GTQZ0301TDP
Plate	checked plate or wood deck
Ladder	Small ladder in the front of the trailer
Axles	13tons,16 tons capacity for the normal and steering Brand BPW,L1,YORK ,FUWA or Anhui axles.
Main beam	Q345 or Q460 high strength steel optional
Suspension	Mechanical suspension (hydraulic or pneumatic Air suspension optional)
Platform	Checked plate or wood deck plate
Power pack	Engine with pump
Tire	215/75R17.5 ,8.00R20,12R22.5 or other size optional
Kin pin	2’’/3.5’’bolt type
Braking system	Double air chamber ,brake emergency relay valve, air tanks ;ABS optional
Electrical	LED light , 7 ways ,24V
Painting	Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
