3 lines 6 axis low loader trailer，100 tons low boy

3 lines 6 axis low loader trailer，100 tons low boy

Product Item：GT0603TDP

Payload (kgs):100000

Tare weight (kgs):16000

Cantilever suspension

trailer with jeep optional

Description

LOW BED TRAILER -1 line 2 axis lowboy semi trailer

Low bed trailer is a kind of semi-trailer that has a super low cargo platform, the platform is also called drop-deck. Mainly specialized for transportation of crawler crane, excavator, crawler loader, bulldozer, railroad equipment, and other crawlers/tires equipment. Benefit from the low bed design, the trailer has high trafficability to go through bridge arc and tunnel, and lowers COG(center of gravity) of cargo.The trailer body has a drop-deck which is lower than the front gooseneck and the rear wheel-set, due to the drop deck design, it always comes with a gooseneck, so it is also called low bed semi-trailer.

QINGDAO SHIYUN TRAILER CO.,LD ,is a professional China Trailer manufacturer with brand “girder trailer”.1 line 2 axis lowboy trailer is a kind of drop deck lowboy trailer whose suspension is bogie cantilever suspension .It can have 8 tyres per lines for more over heavy duty payload .The height can be lift adjustable and the gooseneck can be detachable. All the he parameters can be made according to your special requirement.

Features:

1. Suspension is cantilever 1 line 2 axles suspension.The axles can be swing WSAD.

2. Can be together will front towing dolly for over heavy duty cargo transporting.

3. Lifting function optional :hydraulic lifting suspension be able to adjust height

4. Can make telescopic beam to realize length extension optional .

5. Higher strength steel to ensure the low platform not drop down.Arc-up design for the cargo platform deck,can be flatbed type also.

6. Drop deck minimize trailer’s platform height, increase trafficability and stability for over height cargo.

7. Side bracket is an option for widening drop deck, removable and swinging

8. The cover surface of the platform can be wood to anti-skidding or diamond checked plate.

9.Gooseneck can be fixed neck or hydraulic detachable type.Power pack with valves optional

10.The design can be expose tires type or covered tires type

Parameters:

Model	GT0602TDP	GT0603TDP	GT0604TDP	GT0605TDP		GT0606TDP
Axles No.	2 lines 4 axles	3 lines 6 axles	4 lines 8 axles	5 lines 10 axles		6 lines 12 axles
Pay load	60-80tons	80-120tons	100-160tons	100-200tons	120-220tons
Tires	16pcs	24pcs	32pcs	40pcs	48pcs
Rims	16pcs	24pcs	32pcs	40pcs	48pcs
Size	Optional
Main beam	Heavy duty Double I beam.
Side beam	500mm I beam
Plate	checked plate or wood deck
Ladder	Mechanical spring ladder or hydraulic ladder
Suspension	Rigid cantilever suspension with 1 line 2 axis
King pin	2’’/3.5’’ bolt type
Landing gear	40 Ton two speed
Braking system	Double air chamber ,brake valve,45L air tanks ;ABS optional
Electrical	LED light , 7 ways ,24V
Painting	Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting

Above data can be customized per your local regulation and requirement.

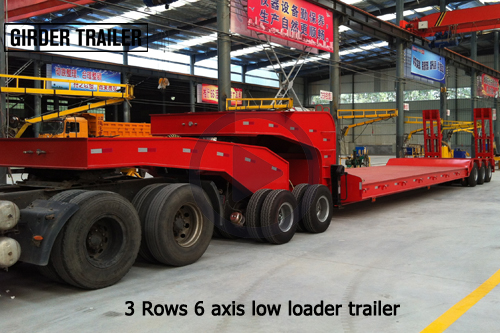

3 rows 6 axis lowboy trailer 100tons

3 rows exposed tyres 120 tons step frame low loader trailer for tank container transporting

60-80tons 2 lines 4 axis lowboy semi trailer (platform lifting ,main beam extendable optional )

100 tons 3 lines 6 axis low bed semi trailer with towing dolly

3 lines 6 axis drop deck semi trailers with lifting platform

100 tons 3 lines 6 axis front loading detachable gooseneck lowboy semi trailer

120tons 4 lines 8 axles low platform semi trailer

150tons 5 lines 10 axis drop deck lowboy semi trailer

5 lines 10 axles telescopic extendable lowboy semi trailer ( joint type optional 3 +2)

180tons 6 lines 10 axis low bed semi trailer for sale

Shipment for lowbed trailer

DIFFERENT TYPES OF LOWBOY TRAILER made by [GIRDER TRAILER]

1	Normal lowbed trailer	6	Lowbed trailer with dolly
2	Multi axles lowbed trailer	7	Ultra lowbed trailer
3	Lifting steering lowbed trailer	8	1 lines 2 axis lowbed trailer
4	Front loading lowbed trailer-----Detachable gooseneck lowbed trailer	9	Extension lowbed trailer
5	Front loading lowbed trailer-----folding gooseneck lowbed trailer	10	Other lowbed trailers
