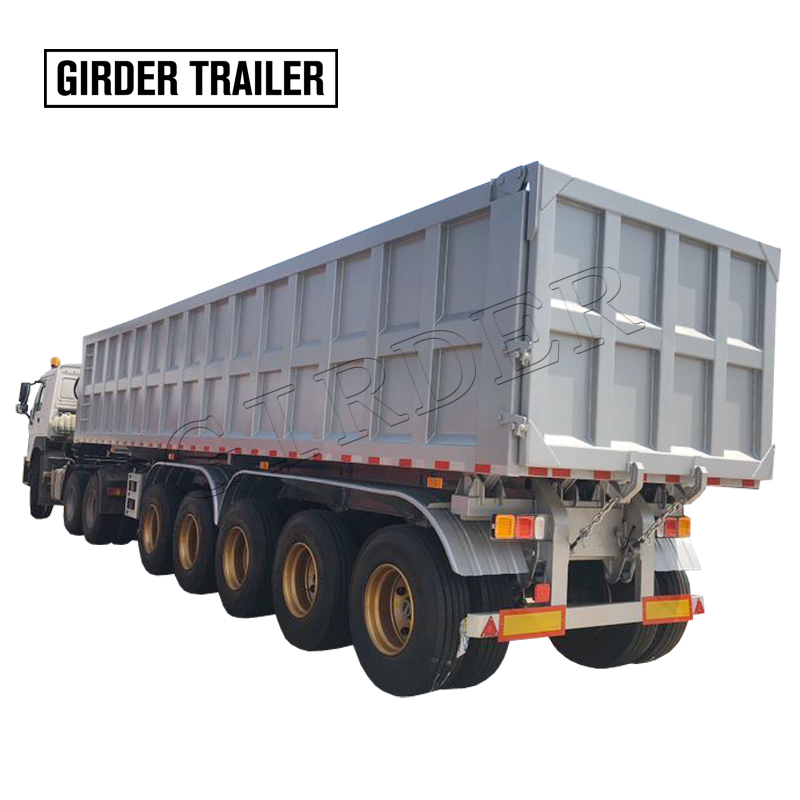

Multi axles dump semi trailer ,5/6 axles tipper trailer

Multi axles dump semi trailer ,5/6 axles tipper trailer

Product Item：GT0105

Payload (kgs):80000

Tare weight (kgs):11800

Dimensions (mm) (Customize ):9000*2500*3400

Axles:13 ton(16ton,20ton) capacity

Description

QINGDAO SHIYUN TRAILER CO.,LD ,is a professional China Trailer manufacturer with brand “girder trailer”.For transporting and unloading sand ,coal,soil,stone and other bulk cargo ,we provide different kinds of hydraulic dump trailers .According to the different function and tipping direction ,We have end dump trailer,side dump trailer ,container skeletal /flatbed dump trailer and conveyor belt type trailer.

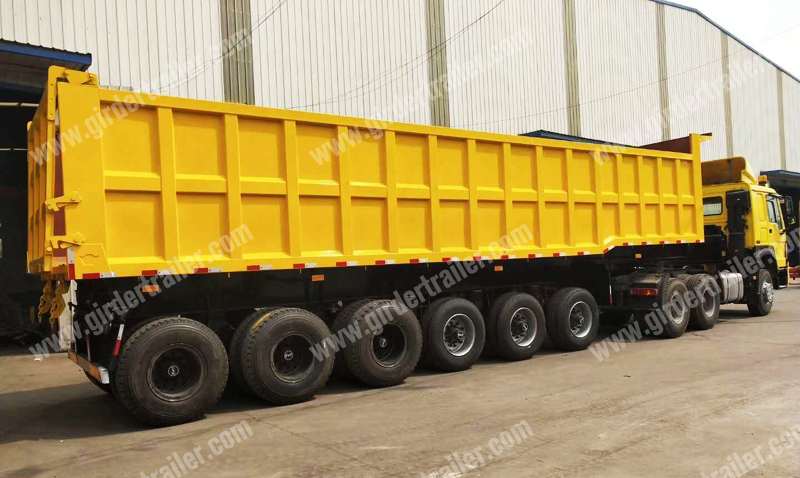

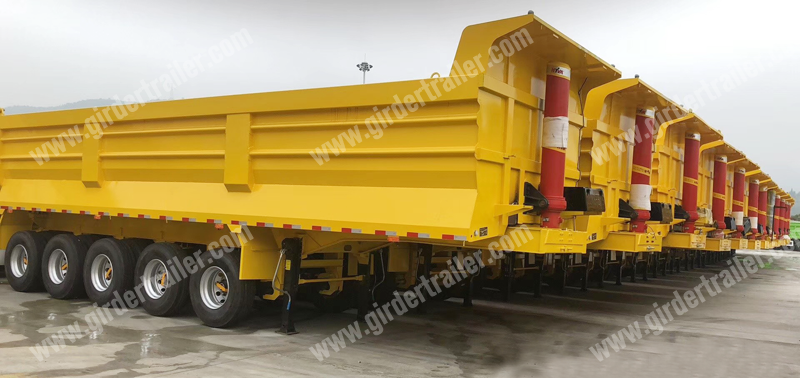

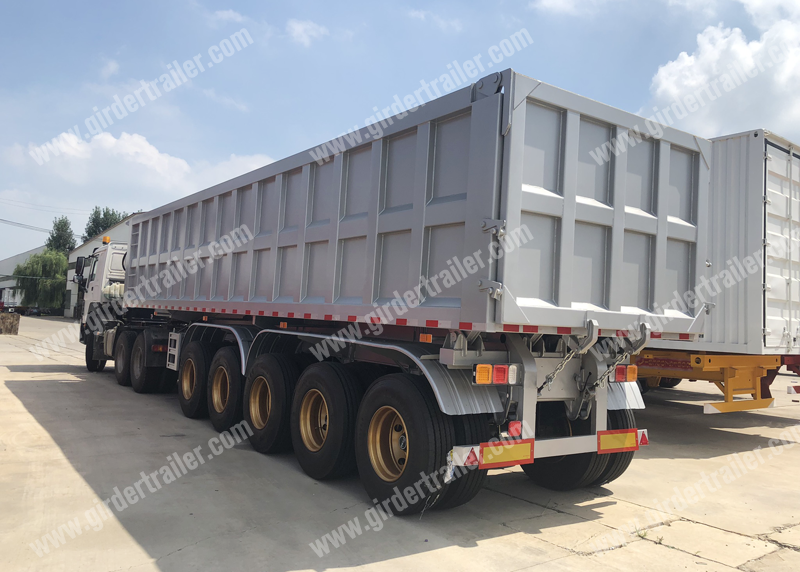

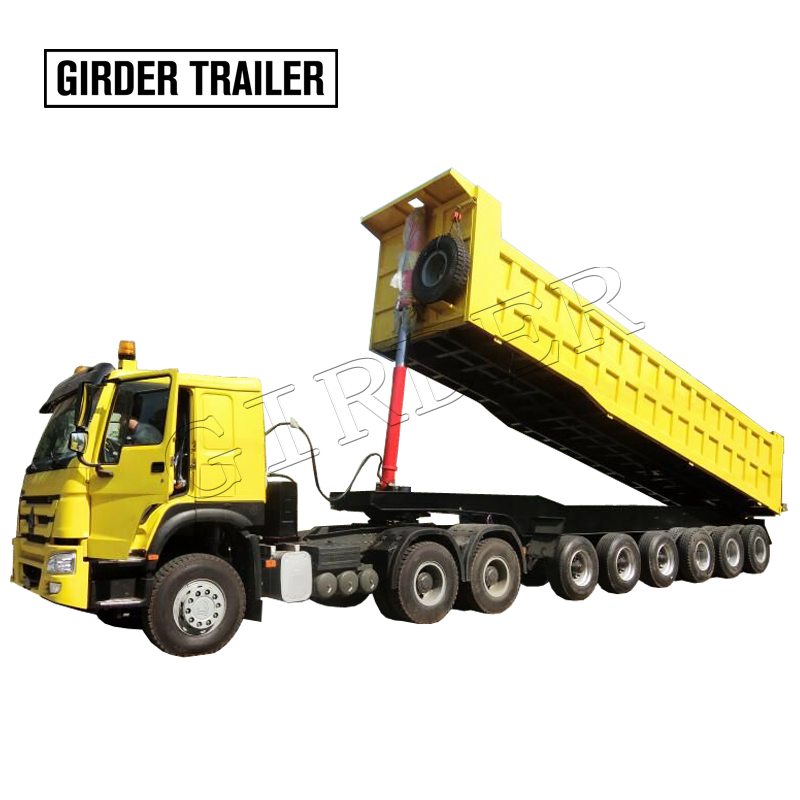

Heavy duty Multi axles dump semi trailer ,5/6 axles tipper trailer :

Features:

1. The volume can be design from 10cbm-100cbm

2. The shape can be design square type or U type.

3. Axles number can be 1,2,3,4 axles or superlink axles for transporting different weight cargo.

4.The hydraulic cylinders can be HYVA or other brand optional .

5.Main beam can be straight beam or step deck type.

6.The trailer main beam can be telescopic extension to realize the length extendable.

7.The thickness of the side wall and floor are according to transporting different cargoes.

8.Suspension can be normal leaf springs suspension ,air suspension or bogie suspension.

Parameters:

Model	GT0105Z
Size	1000025001600 (mm) ( customizable )
Axles	4/5/6 * 13ton capacity (Brand optional)
Suspension	Mechanical suspension with leaf springs (Air suspension /bogie optional)
Tire	12R22.5 11.00R20 16/20/24pcs (Other size optional)
Rim	9.00-22.5 8.00-20 16/10/24pcs (Other size optional)
King pin	2’’/3.5’’ bolt type
Landing gear	28 Ton two speed
Braking system	Double air chamber ,brake valve,40L air tanks ;ABS optional
Electrical	LED light , 7 ways ,24V
Painting	Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
