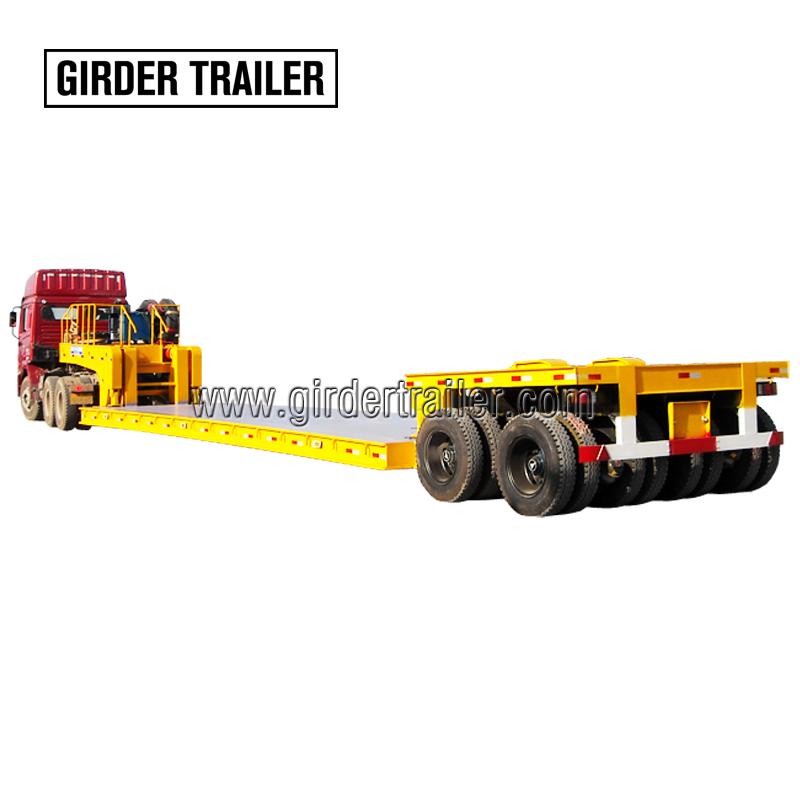

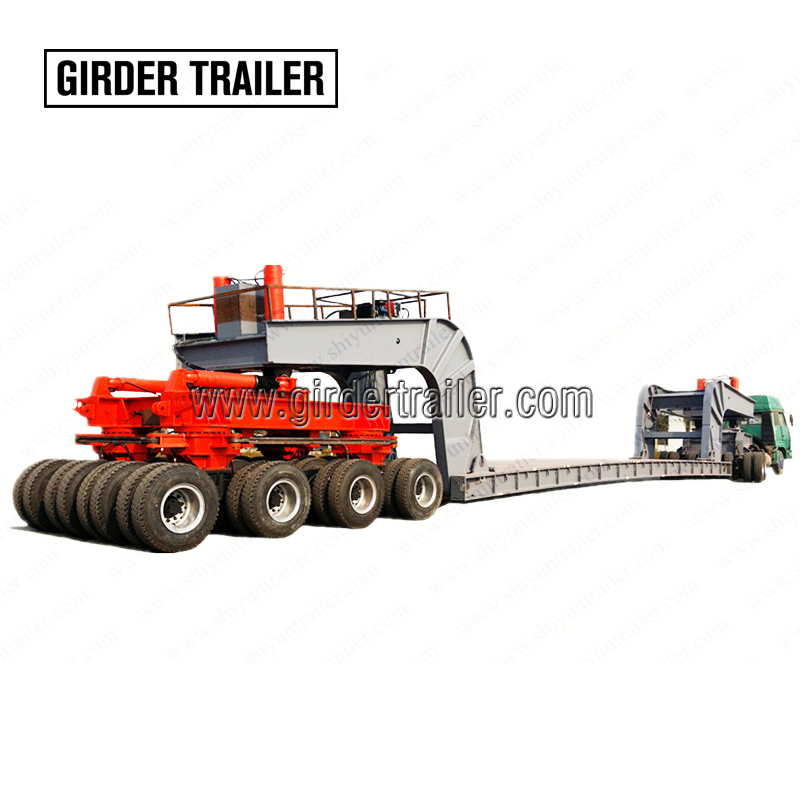

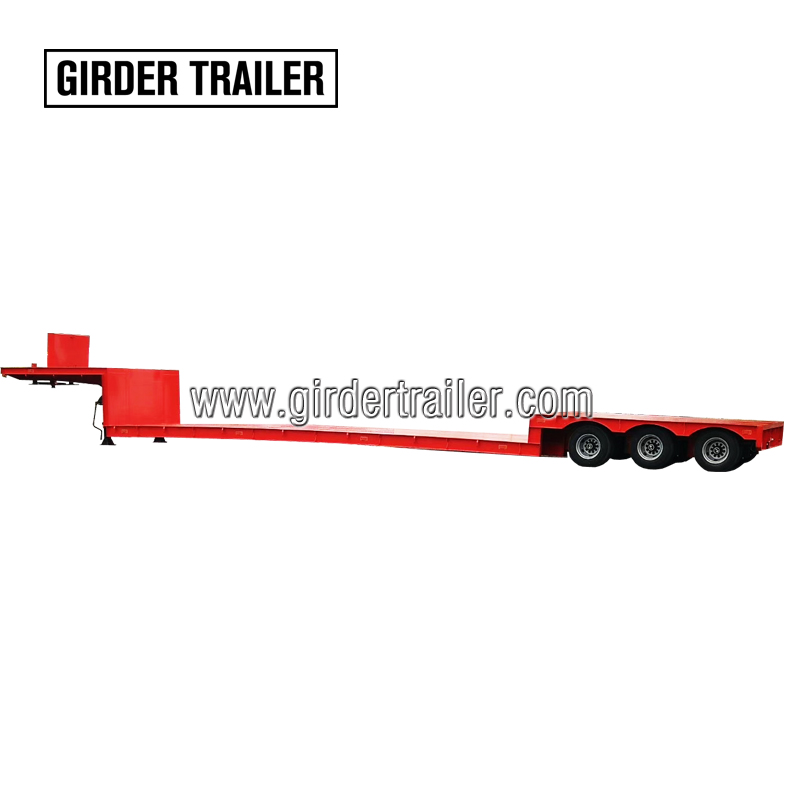

Ultra lowbed trailer

Product Item：GTCD0301TDP

Payload (kgs):more than 40000kgs

platform can be 250mm height

Extendable length optional

steering axles optional

Description

LOW BED TRAILER -Ultra low loader trailer

Low bed trailer is a kind of semi-trailer that has a super low cargo platform, the platform is also called drop-deck. Mainly specialized for transportation of crawler crane, excavator, crawler loader, bulldozer, railroad equipment, and other crawlers/tires equipment. Benefit from the low bed design, the trailer has high trafficability to go through bridge arc and tunnel, and lowers COG(center of gravity) of cargo.The trailer body has a drop-deck which is lower than the front gooseneck and the rear wheel-set, due to the drop deck design, it always comes with a gooseneck, so it is also called low bed semi-trailer.

DIFFERENT TYPES OF LOWBED TRAILER made by [GIRDER TRAILER]

1	Normal lowbed trailer	6	Lowbed trailer with dolly
2	Multi axles lowbed trailer	7	Ultra lowbed trailer
3	Lifting steering lowbed trailer	8	1 lines 2 axis lowbed trailer
4	Front loading lowbed trailer-----Detachable gooseneck lowbed trailer	9	Extension lowbed trailer
5	Front loading lowbed trailer-----folding gooseneck lowbed trailer	10	Other lowbed trailers

Ultra low bed trailer :

QINGDAO SHIYUN TRAILER CO.,LD ,is a professional China Trailer manufacturer with brand “girder trailer”.Ultra low bed trailer is a kind of drop deck lowboy trailer whose platform can be lower than 500mm.The height can be lift adjustable and the axles can be steerable.It can transport heavy over height cargoes and abnormal over sized tanks containers. All the he parameters can be made according to your special requirement.

Features:

1. trailer deck can be 250mm height from the ground.

2. The suspension can be normal mechanical suspension or can be steerable With steering axles .small turning radius, up to 55° steering angle.Both automatically and manually all wheels steering.For manually operation we will install the power station and valve.

3. Lifting function optional :hydraulic lifting suspension be able to adjust height

4. Can make telescopic beam to realize length extension optional .

5. Higher strength steel to ensure the low platform not drop down.Arc-up design for the cargo platform deck,can be flatbed type also.

6. Drop deck minimize trailer’s platform height, increase trafficability and stability for over height cargo.

7. Side bracket is an option(for increase overall width), removable and swinging

8. The cover surface of the platform can be frame type or diamond checked plate.

9.Gooseneck can be normal or hydraulic detachable type.

10.The design can be expose tires type or covered tires type.

Parameters:

Model	GTCD0301TDP
Plate	checked plate or frame type
Ladder	Mechanical spring ladder or hydraulic ladder
Axles	13tons,16 tons capacity for the normal and steering Brand BPW,L1,YORK ,FUWA or Anhui axles.
Suspension	Mechanical suspension (hydraulic or pneumatic Air suspension optional)
Tire	215/75R17.5 or other size optional
Rim	17.5*6.00 12 (Other size optional)
King pin	2’’/3.5’’ bolt type
Landing gear	40 Ton two speed
Braking system	Double air chamber ,brake emergency relay valve, air tanks ;ABS optional
Electrical	LED light , 7 ways ,24V
Painting	Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
