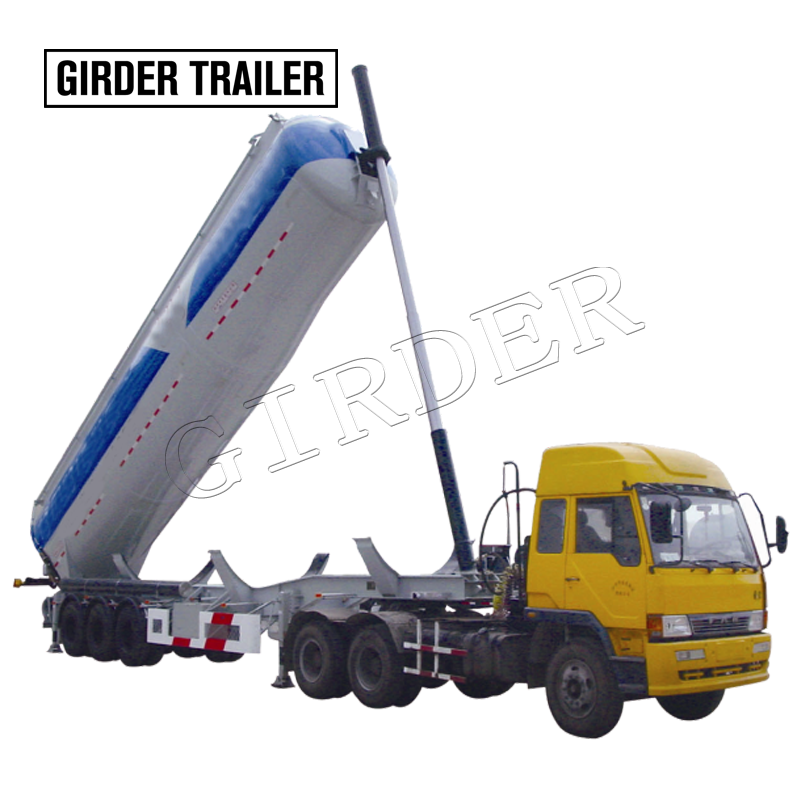

3 axles tank dump trailer

Product Item：GT0703Z

Payload (kgs):50000

Tare weight (kgs):10800

Dimensions (mm) (Customize ):9000*2500*3400

Axles:13 ton(16ton,20ton) capacity

Description

QINGDAO SHIYUN TRAILER CO.,LD ,is a professional China Trailer manufacturer with brand “girder trailer”.For transporting and unloading sand ,coal,soil,stone and other bulk cargo ,we provide different kinds of hydraulic dump trailers .According to the different function and tipping direction ,We have end dump trailer,side dump trailer ,container skeletal /flatbed dump trailer and conveyor belt type trailer.

3 axles tank dump trailer:

Features:

1.The volume can be design from 10cbm-100cbm

2.The shape is tank shape for transporting power material.

3.Axles number can be 1,2,3,4 axles or superlink axles for transporting different weight cargo.

4.The hydraulic cylinders can be HYVA or other brand optional .

5.Main beam can be straight beam or step deck type.

6.Discharge valve optional

7.Suspension can be normal leaf springs suspension ,air suspension or bogie suspension.

Parameters:

Model	GT0703Z
Size	900025001600 (mm) ( customizable )
Axles	3* 13ton capacity (Brand optional)
Suspension	Mechanical suspension with leaf springs (Air suspension /bogie optional)
Tire	12R22.5 11.00R20 12pcs (Other size optional)
Rim	9.00-22.5 8.00-20 12pcs (Other size optional)
King pin	2’’/3.5’’ bolt type
Landing gear	28 Ton two speed
Braking system	Double air chamber ,brake valve,40L air tanks ;ABS optional
Electrical	LED light , 7 ways ,24V
Painting	Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
