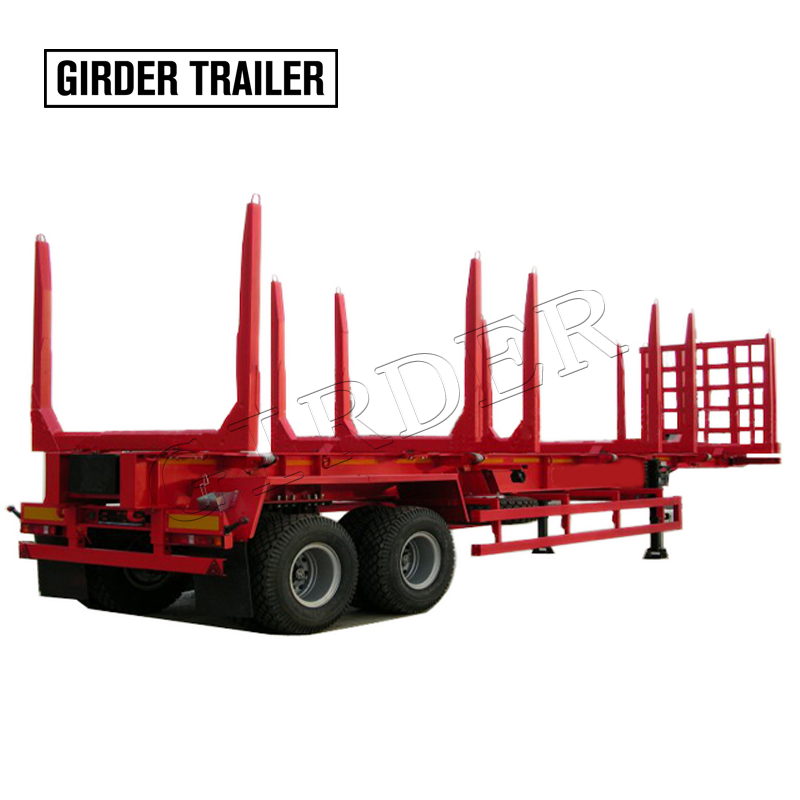

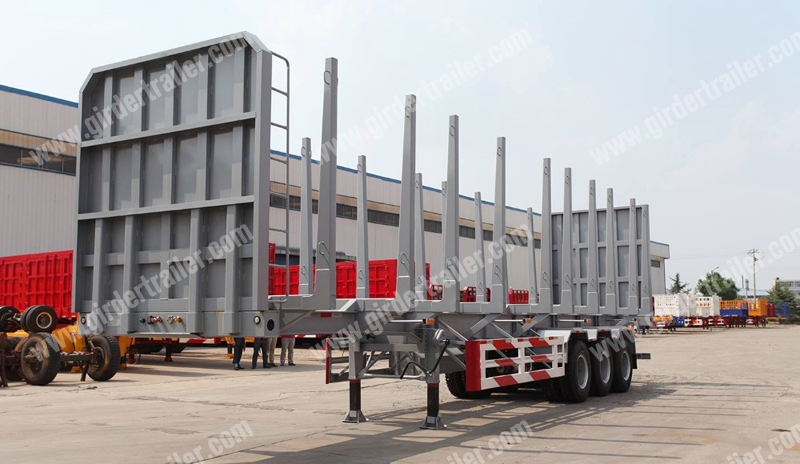

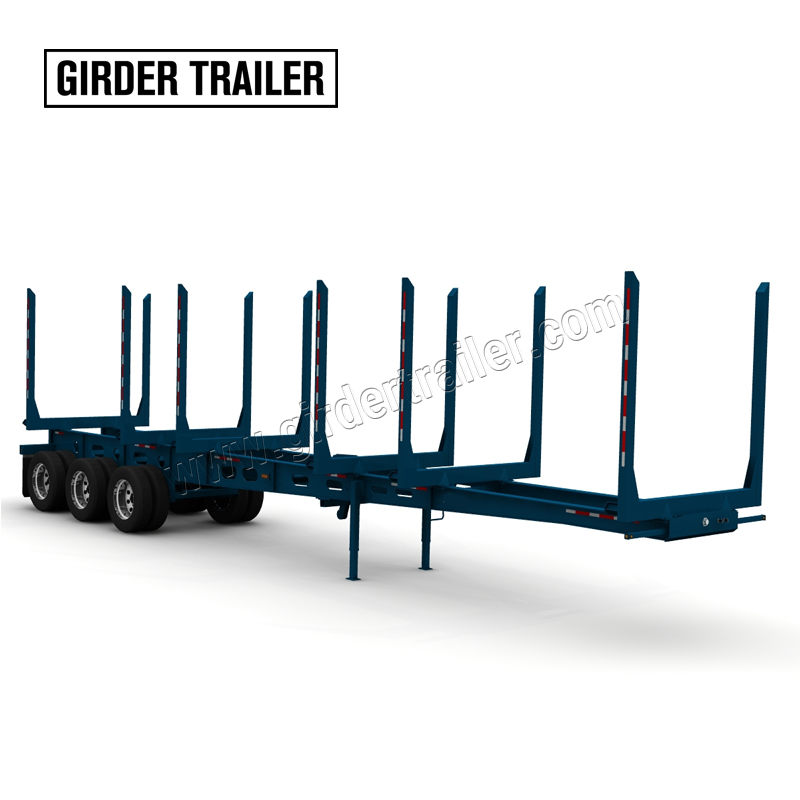

Log transport semi trailer,Timber hauling trailer

Log transport semi trailer,Timber hauling trailer

Product Item：GT0301YMC

Payload (kgs):50000

Log Bolster:3 set of log bolster 1800mm height

Side board height:600-2200 optional

Axles:2/3/4 pcs optional

Description

QINGDAO SHIYUN TRAILER CO.,LD ,is a professional China Trailer manufacturer with brand “girder trailer”.For different kinds of cargo transporting ,we have different kinds of trailer solutions: flatbed trailer with side bar,drop side trailer,fence trailer,dry van trailer,wing van trailer,reefer trailer,curtain side trailer,log trailer,silo trailers and livestock trailers.

Log semi trailer,Timber hauling trailer :

Features:

1.The trailer design can be semi trailer type or towing type by prime mover.

2.bolsters height optional

3.Axles number can be 1,2,3 or 4 axles for transporting different weight cargo.

4.The trailer can be skeletal type or flatbed type.

5.The trailer can be tandem axles interlink type

6.Can be with container twist lock to connect with the bolsters.

7.Suspension can be normal leaf springs suspension ,air suspension or bogie suspension.

Parameters:

Model	GT0301YMC
Main beam	Heavy duty I beam.
Bolster	Quantity optional
Axles	2/3 * 13ton capacity (BPW,FUWA,L1 and other Brand optional)
Suspension	Mechanical suspension (Air suspension/Bogie suspension optional)
Leaf spring	10pcs
Tire	12R22.5 315/80R22.5 295/80R22.5 12pcs (Other size optional) 385/65R22.5
Rim	9.00-22.5 12pcs (Other size optional)
King pin	2’’/3.5’’ bolt type
Landing gear	28 Ton two speed
Twist locks	12 pcs
Braking system	Double air chamber ,brake valve,32L air tanks ;ABS optional
Electrical	LED light , 7 ways ,24V
Painting	Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
